Specifications
| Form factor | ATX |
| Power | 650 |
| Fan | 120 |
| Efficiency (certificate 80 plus) | Bronze |
| Power factor correction (PFC) | active |

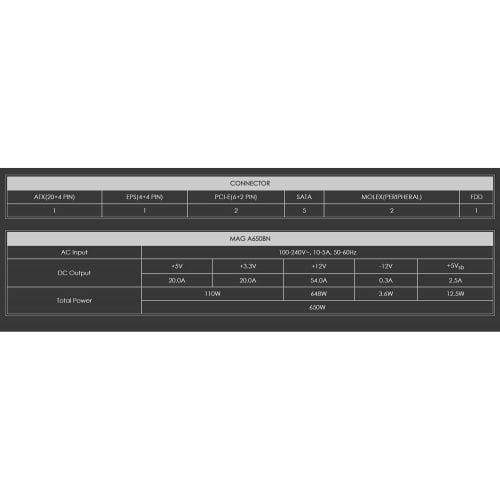

The output characteristics
| +5V | 20 |
| +3.3V | 20 |
| +12V1 | 54 |
| -12V | 0.3 |
| +5Vsb | 2.5 |

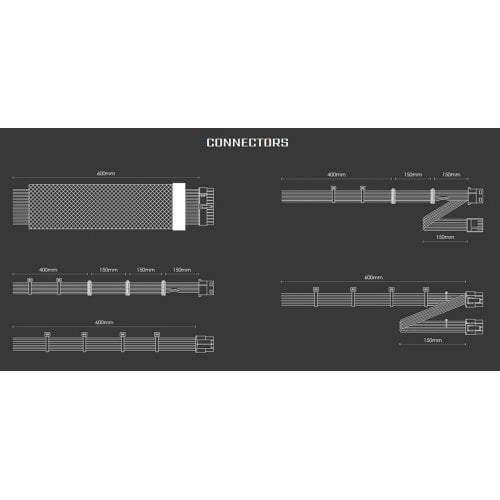

Connectors
| Connection to the motherboard | 20+4 pin |
| Connection to video cards | 6+2-pin 2 шт. |
| The processor power | 4 pin, 8 pin |
| Number connectors 4-Pin Molex | 2 |
| Number of SATA connectors | 5 |
| Number of 4-Pin Floppy connectors | 1 |
Appearance
| Color | Черный |
| Dimensions | 150 x 140 x 86 |
additional characteristics
| Unfastened cables | - |
| Cracking protection | + |
| Status PSU | New |
| Additionally |
Safety OVP (Over Voltage Protection) OPP (Overload Protection) OCP (Overload protection for any of the outputs of the unit individually) SCP (Protection short circuit) OTP (Overheat Protection) |
