CPU
| Type of | Intel Motherboards |
| Socket connector (SOCKET) | LGA1700 |
| Processors | Processors LGA1700 |
| Chipset (North Bridge) | Intel B660 |
RAM
| Type of memory | DDR4 DIMM |
| Compatible RAM | DDR4 for PC |
| Number of memory slots | 4 |
| TOMAL CHANNals | 2 |
| Max. memory size | 128 |
| The minimum memory frequency | 1866 |
| Maximum memory frequency | 5000 |
Communications
| Network adapter (LAN) | 1 x 2500 Mbps |
Sound
| Sound card | Realtek ALC1220 |
| Sound scheme | 7.1 |
Built -in ports
| The number of Sata III | 4 |
| Number PCI-E 1x | 1 |
| Number PCI-E 16X | 2 |
| Support PCI-E 16X V3.0 | + |
| Support PCI-E 16X V5.0 | + |
| Number of internal USB 2.0 | 2 |
| Number of internal USB 3.2 | 1 |
| Number of internal USB Type-C | 1 |
| COM COM (RS-232) | 1 |
| Number of slots M.2 | 2 |
| SYS_FAN | 3 |
Power connector
| 24-pin | 1 |
| 8-pin | 1 |

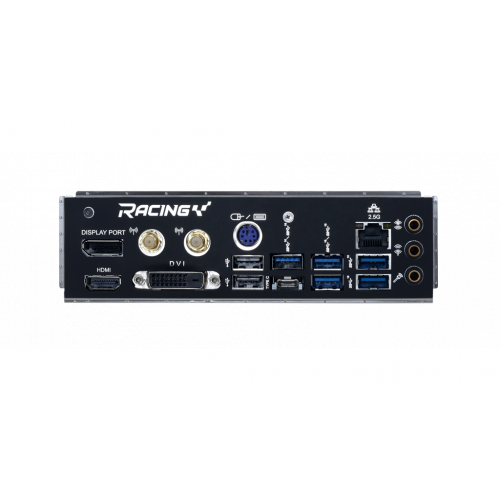

External ports
| PS/2 connector | + |
| Number of external USB 2.0 | 2 |
| Number of external USB 3.2 | 5 |
| Top external USB Type-C | 1 |
| VGA connector | - |
| DVI-D connector | + |
| HDMI connector | + |
| DisplayPort connector | + |
RAID massive
| RAID controller | 0, 1, 5, 10 |
Form factor
| Form factor | microATX |
| Compatibility with the body | microATX chassis |
Ruler
| Brand | Motherboards Biostar (Biostar) |
Peculiarities
| RGB Header | 2 x RGB Header |
| Overclocking | + |
| Peculiarities |
1 x Thunderbolt header 1 x TPM header |
| Color | Синий |
